Restoration of Lower Plinth of the Tomb of Abdur Rahim Khan I Khanan

As with Humayun’s Tomb, the ground level arcade had a raised chabutra or platform which no longer survives though this is visible in archival images. Built of Delhi quartzite, this platform has now been replaced with a sandstone plinth protection at a much lower level than the original chabutra – thus exposing wall surfaces that were originally meant to be buried.

Since this platform is an important architectural element, a significant interface between the garden and the mausoleum as well as serving a structural function for the arcade, it is being restored at original levels with stone of matching texture.

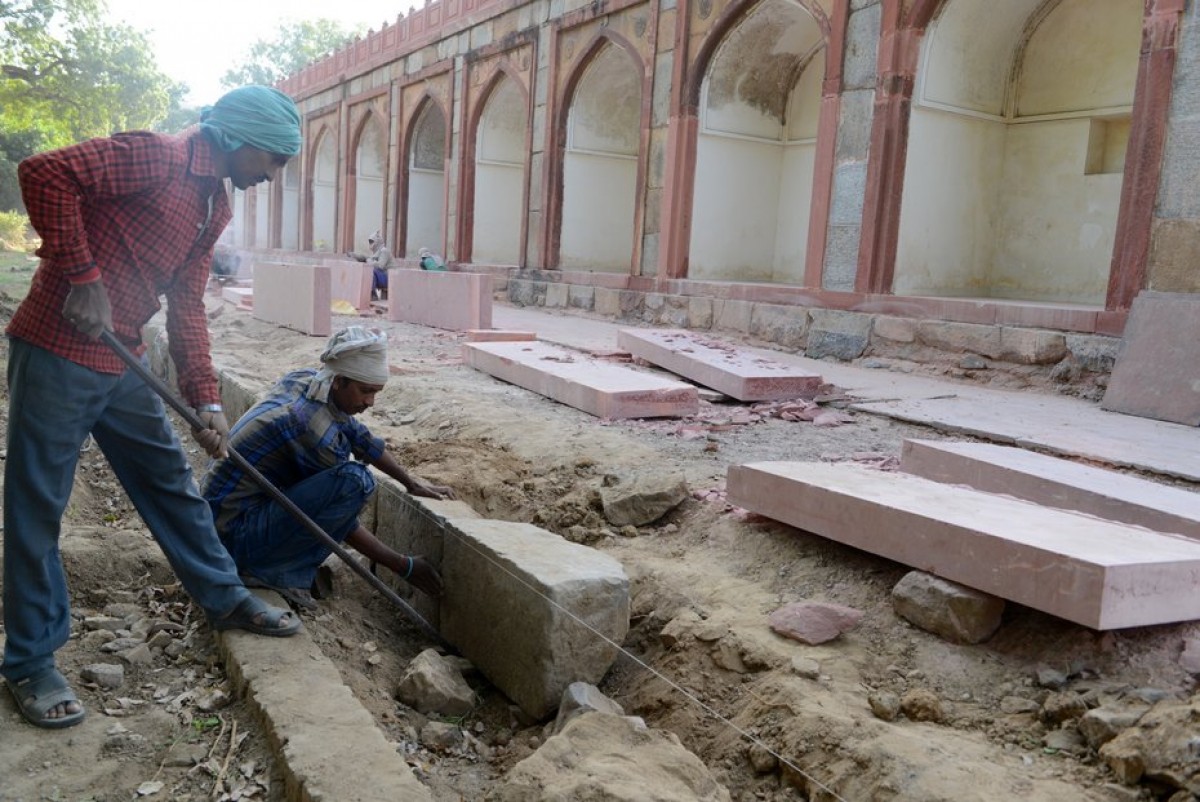

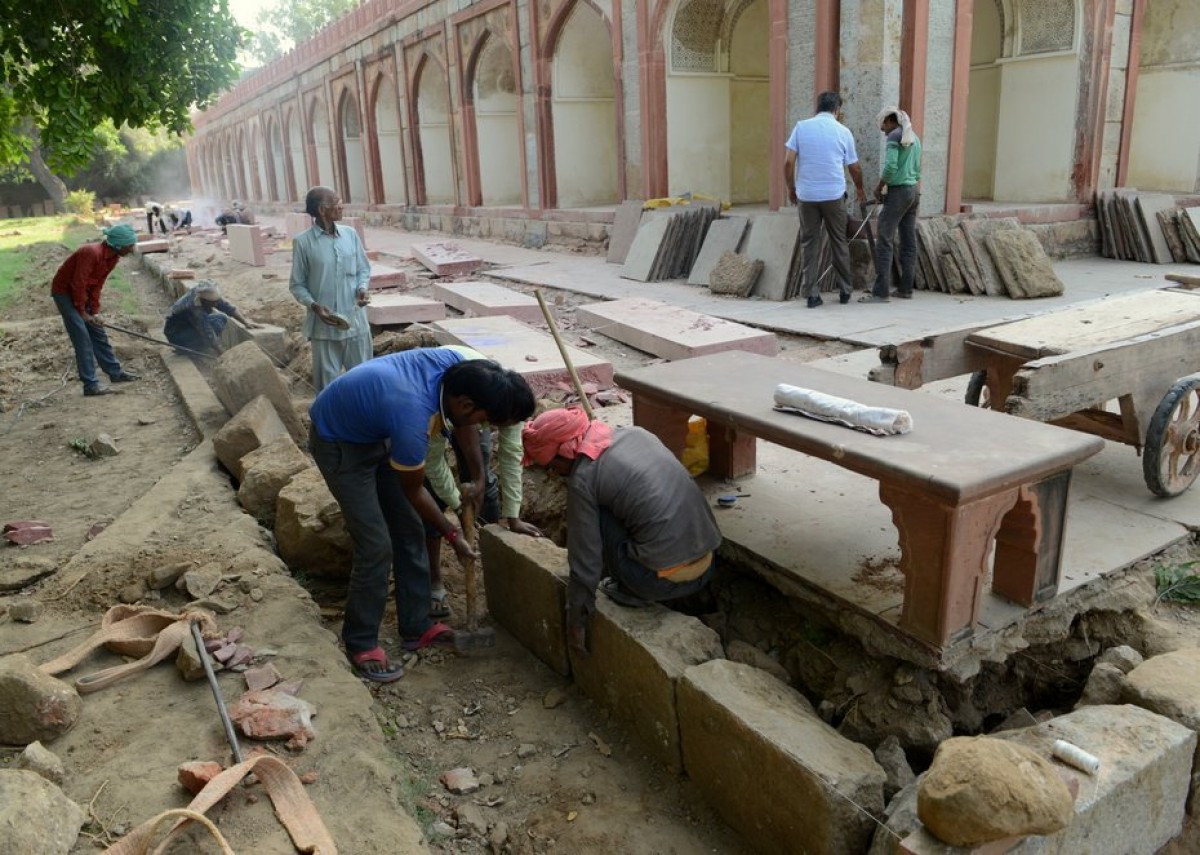

Scientific clearance was carried out along the existing plinth protection to expose the original Delhi quartzite edge of the platform, which was buried under layers of earth. The exposed Delhi quartzite edge of large stone blocks on all four sides has been carefully consolidated with a 4” thick red sandstone edge atop it.

The recent sandstone paving, is much lower and the foundations of the arcade were found to be dangerously exposed by over 40 cm. This has been removed and replaced with the authentic quartzite stone blocks –laid to the original steep slope to ensure quick disposal of rainwater away from the structure.

Gallery

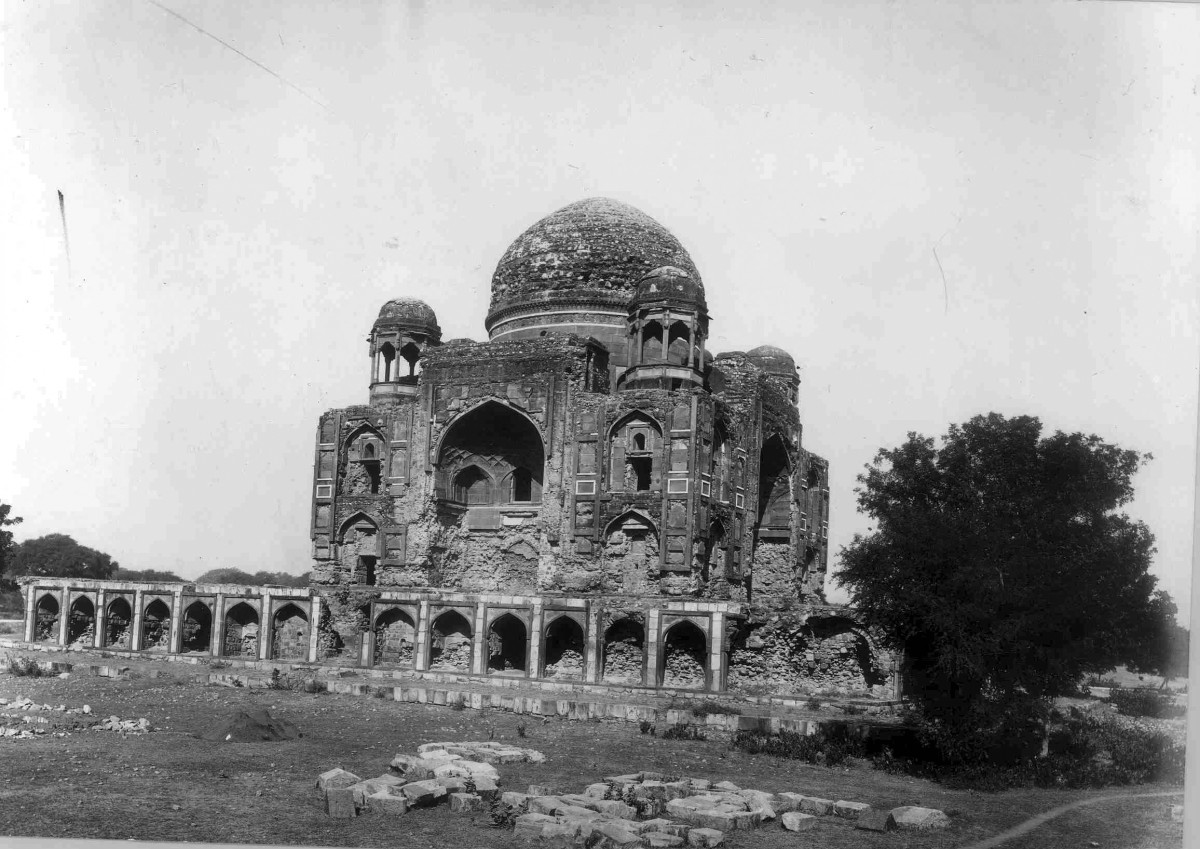

Archival photograph showing the DQ plinth and lower garden levels around the tomb

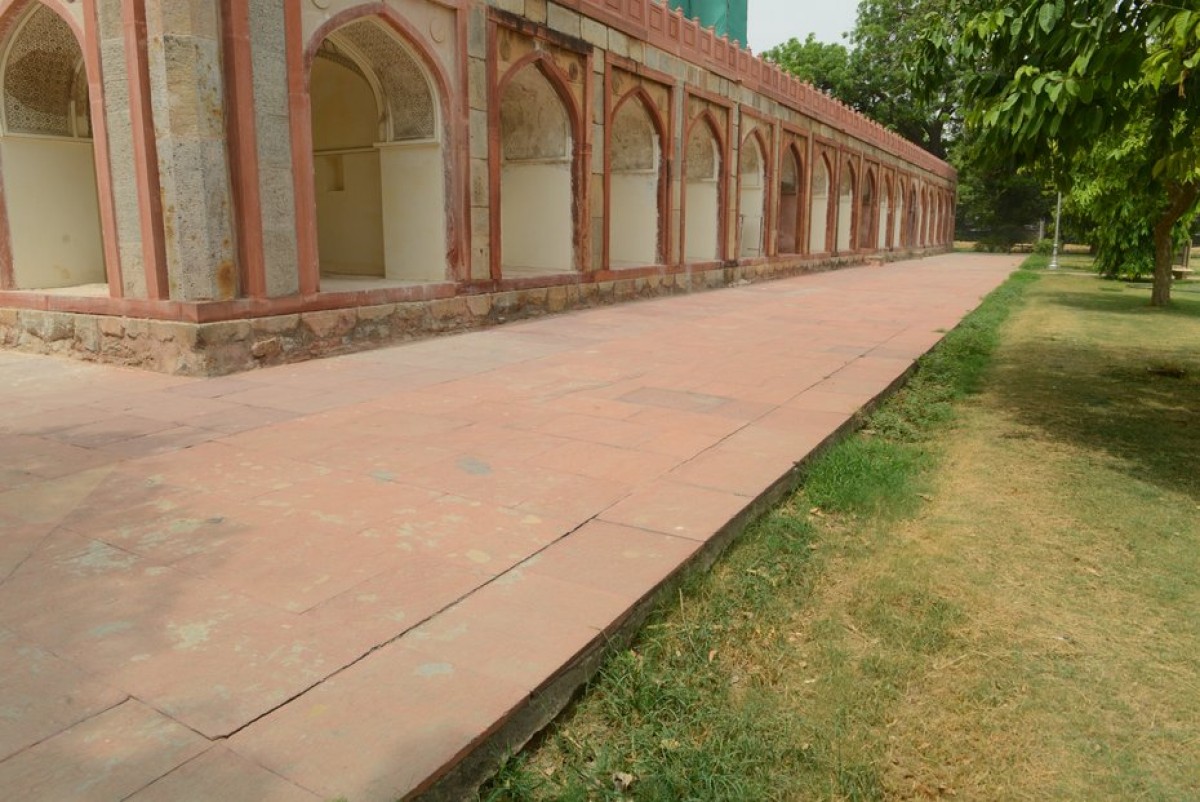

Sandstone paving was found at the onset of the project

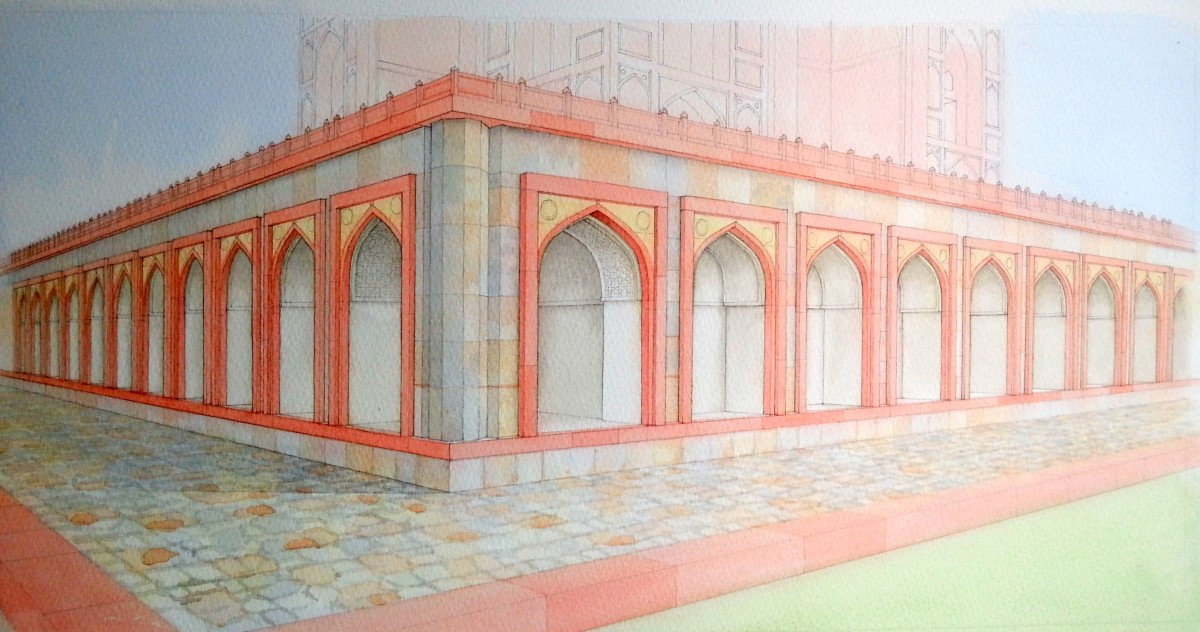

Rendering by an artist showing lower arcade and stone plinth

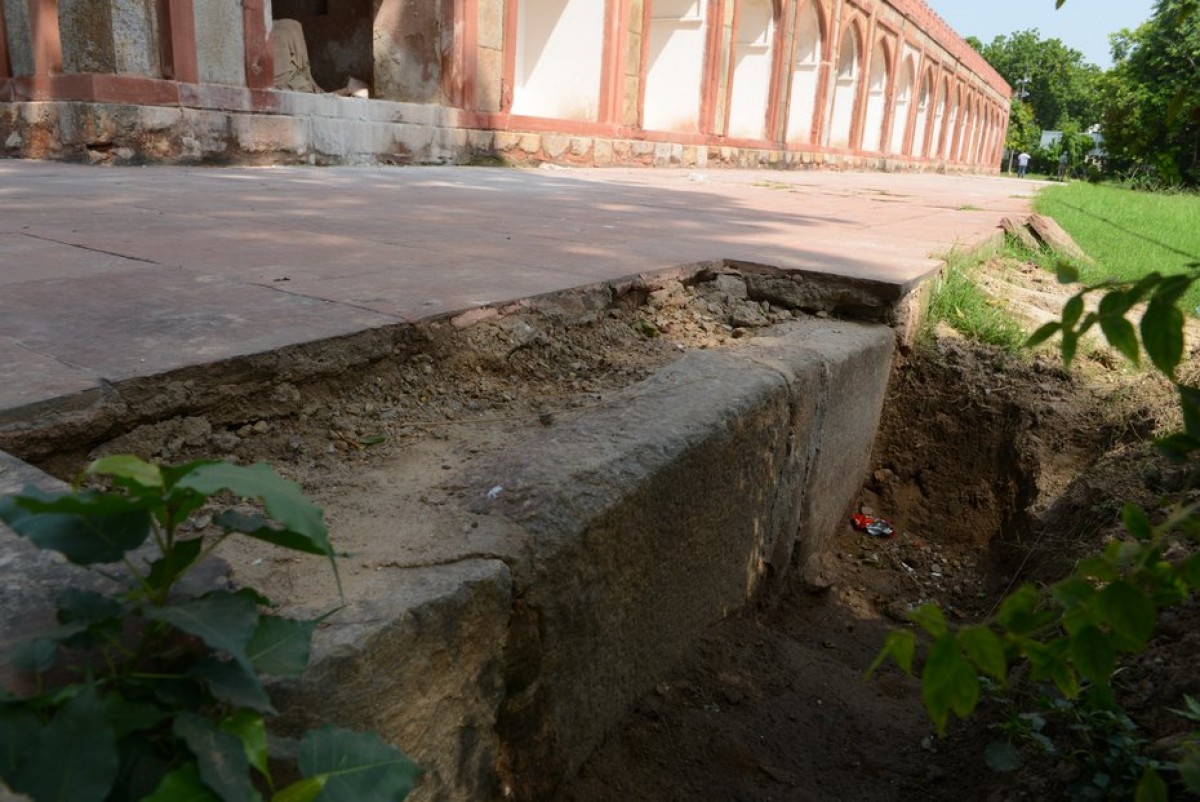

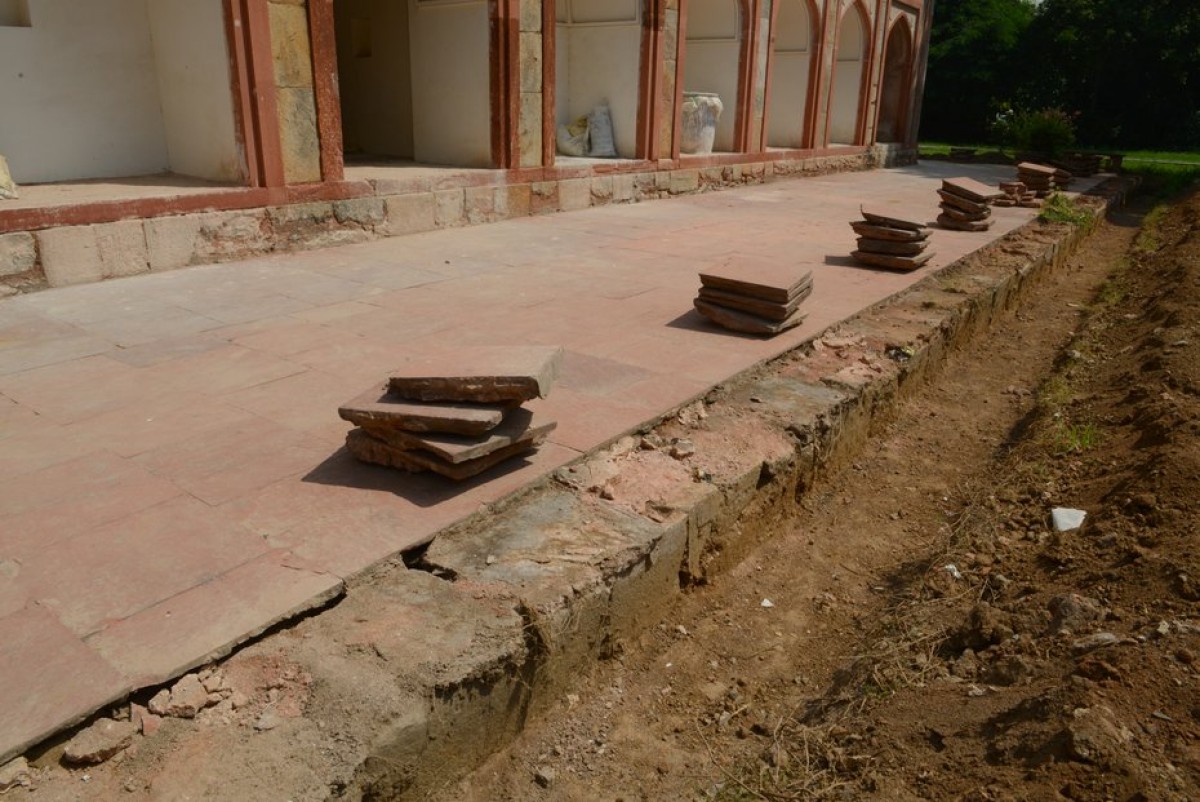

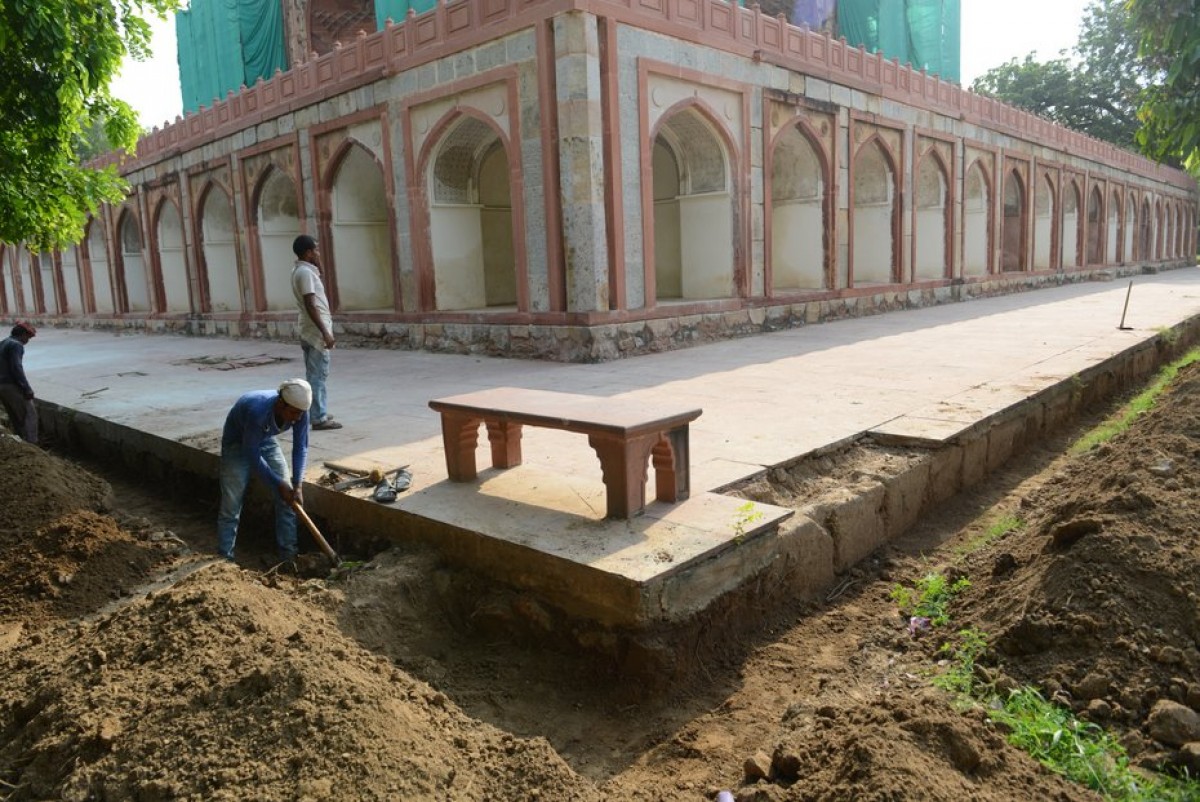

DQ stone discovered underneath the later added sandstone paving

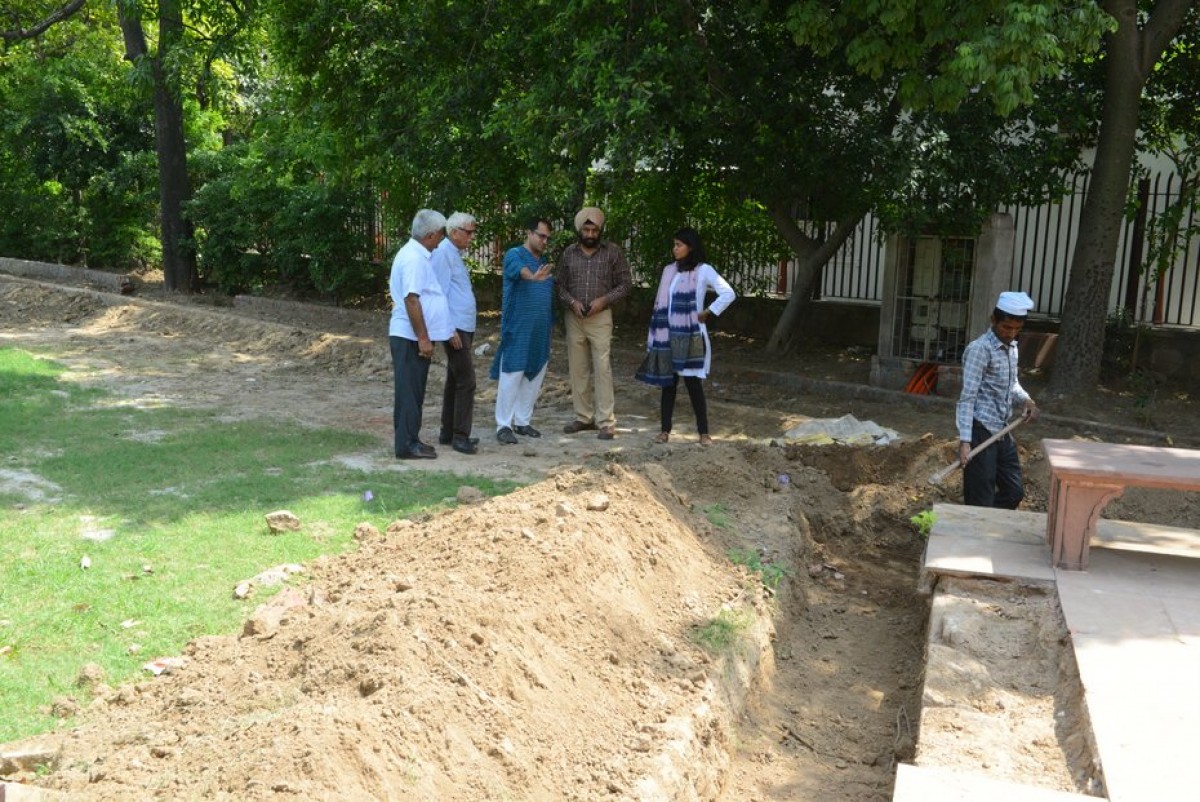

AKTC Team reviewing the original DQ plinth
DQ stone discovered underneath the later added sandstone paving
DQ stone discovered underneath the later added sandstone paving
DQ stone discovered underneath the later added sandstone paving

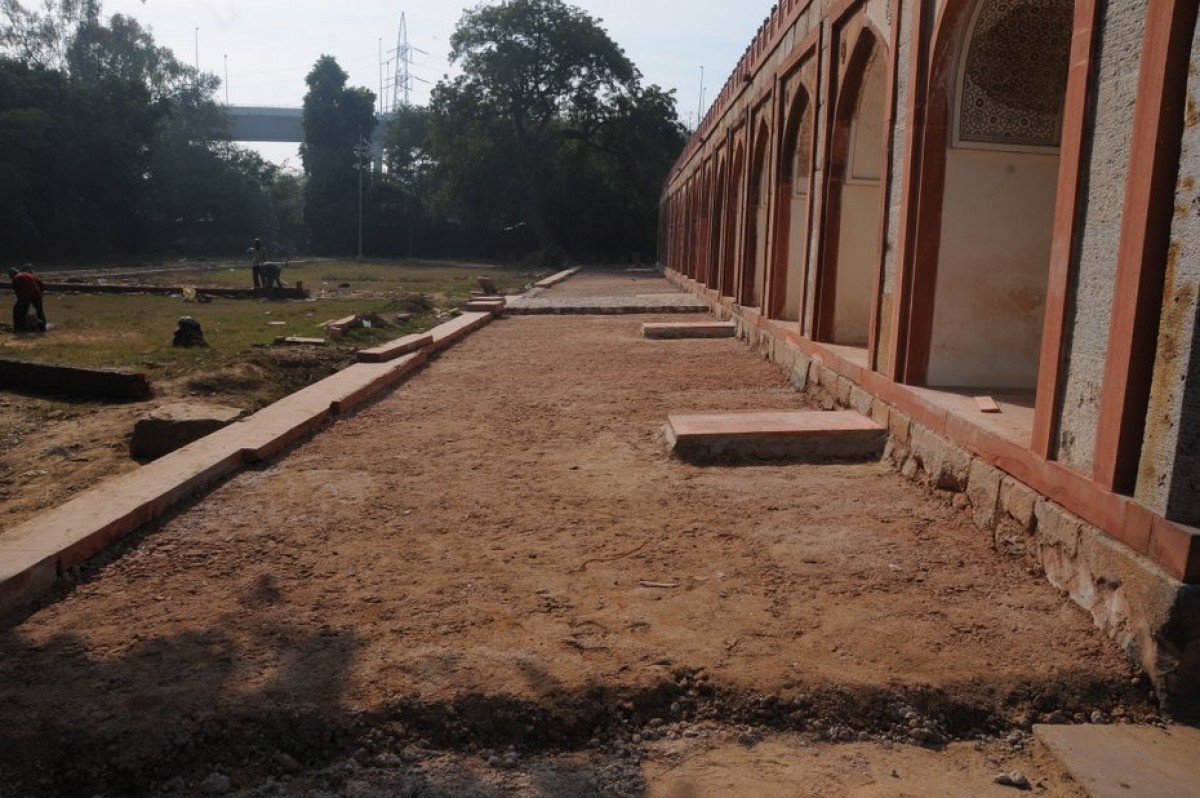

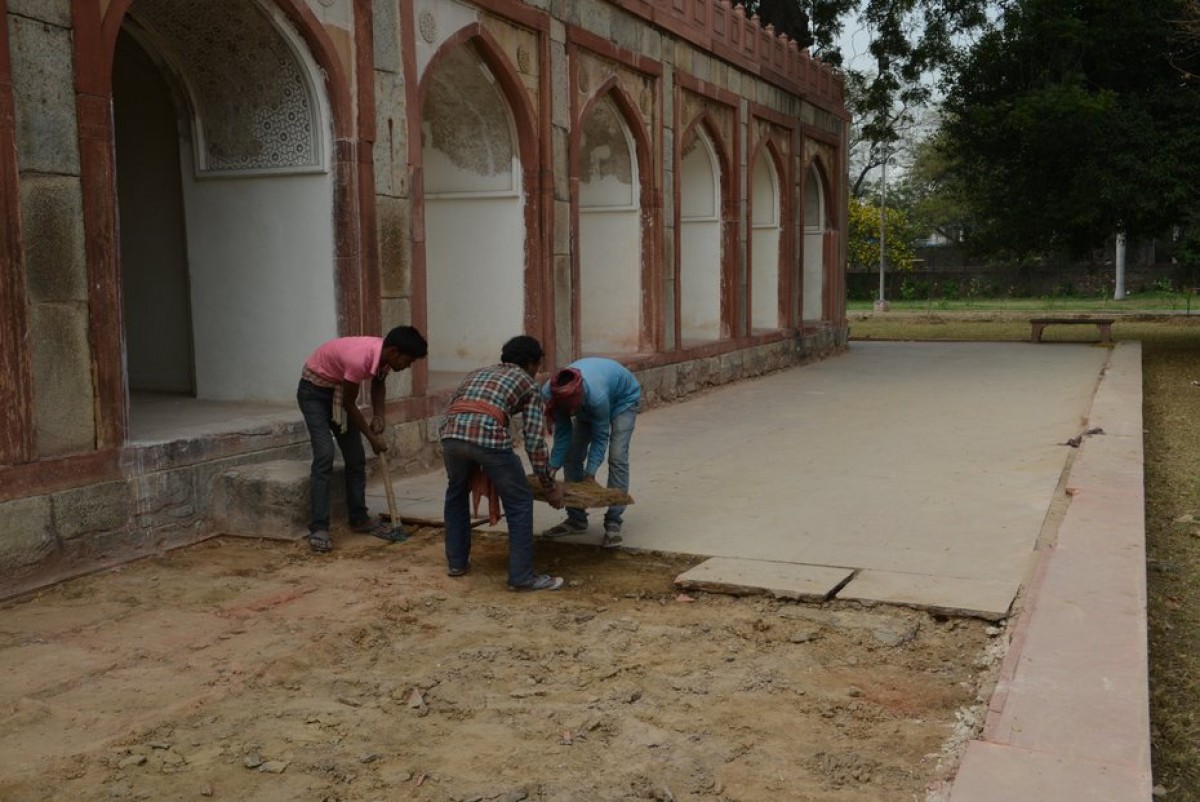

Sandstone blocks were manually removed
DQ stone discovered underneath the later added sandstone paving

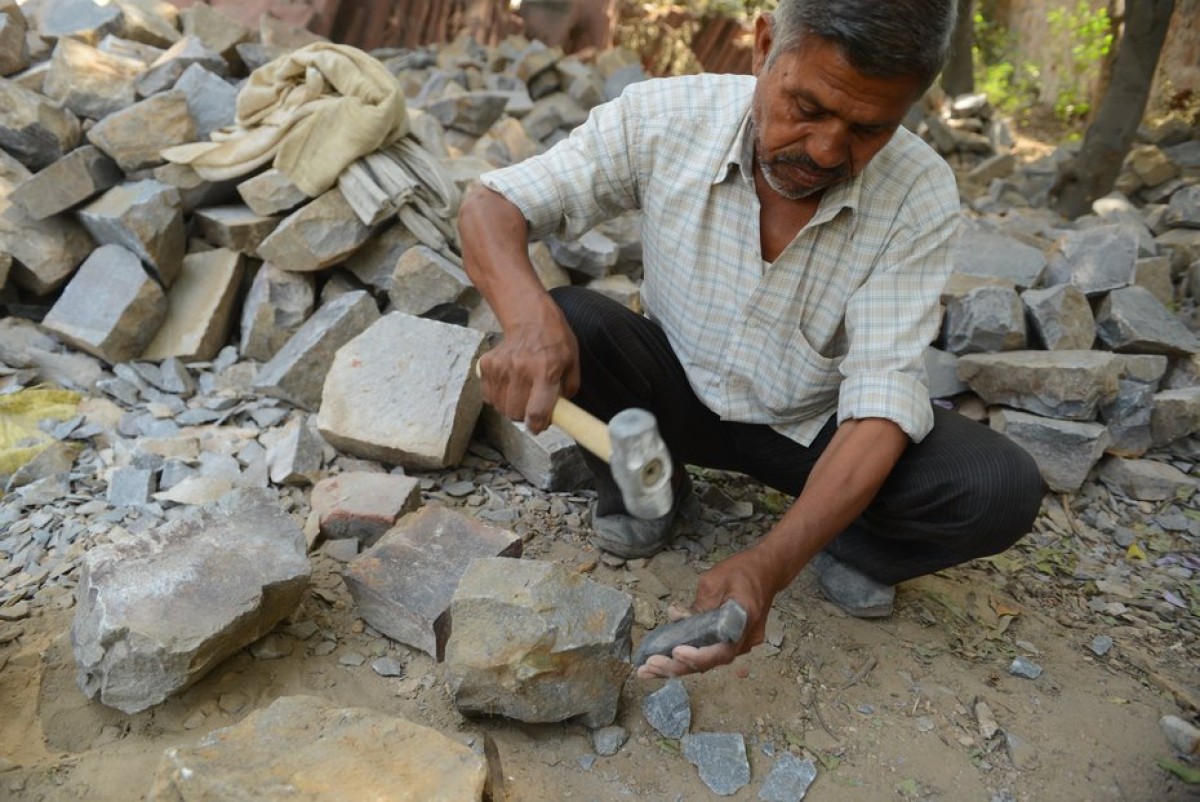

DQ stones for the lower plinth were hand chiselled
DQ stone discovered underneath the later added sandstone paving

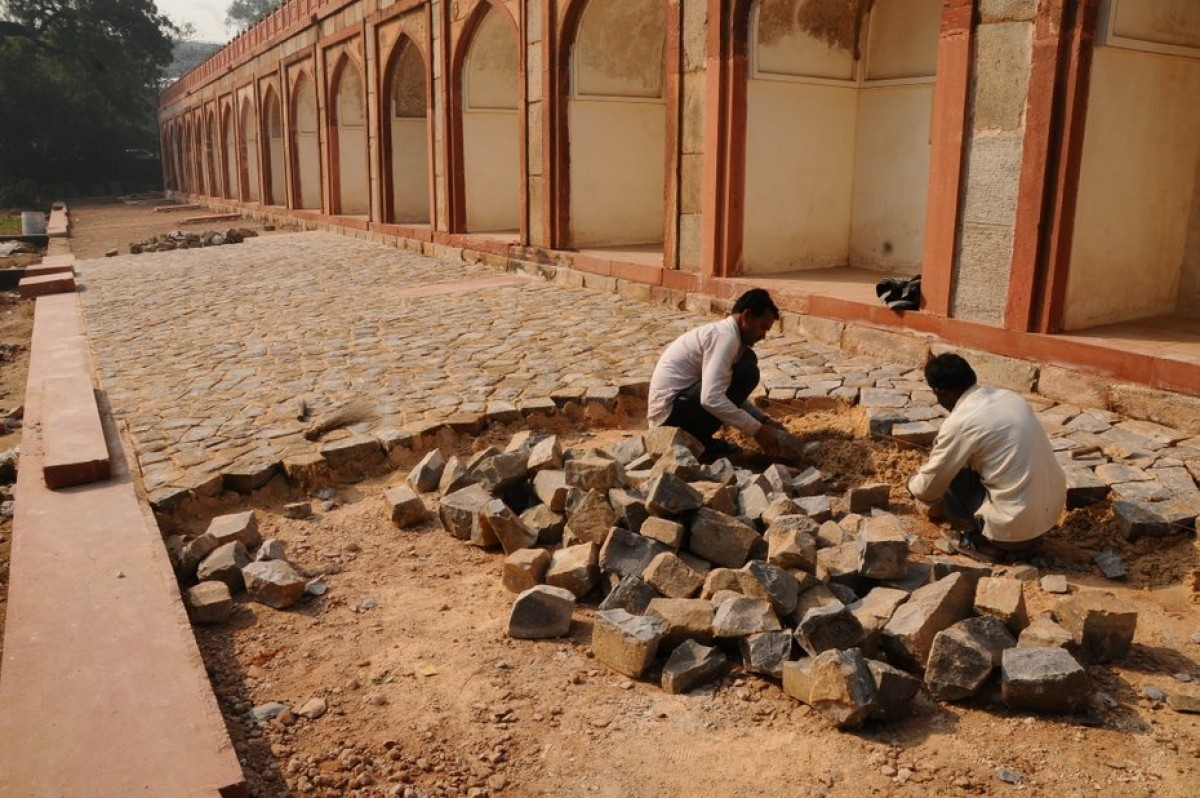

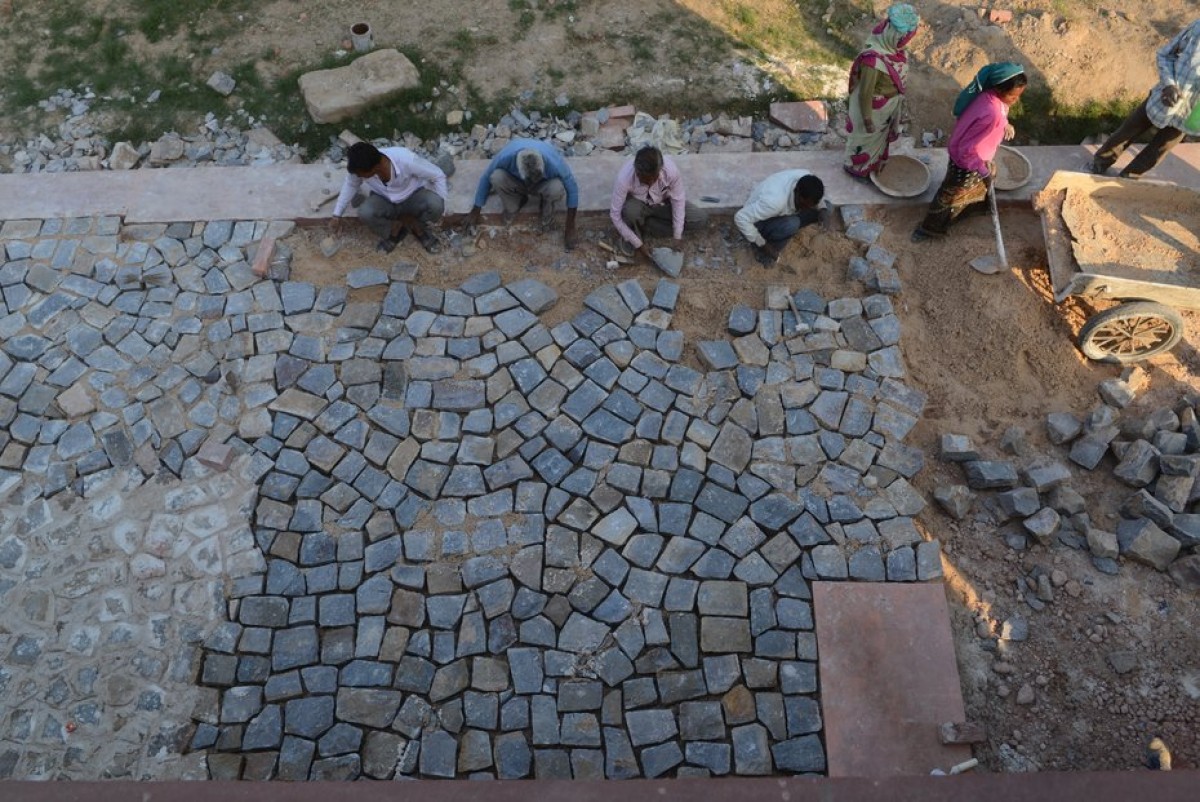

Conservation of DQ stone on the Lower plinth

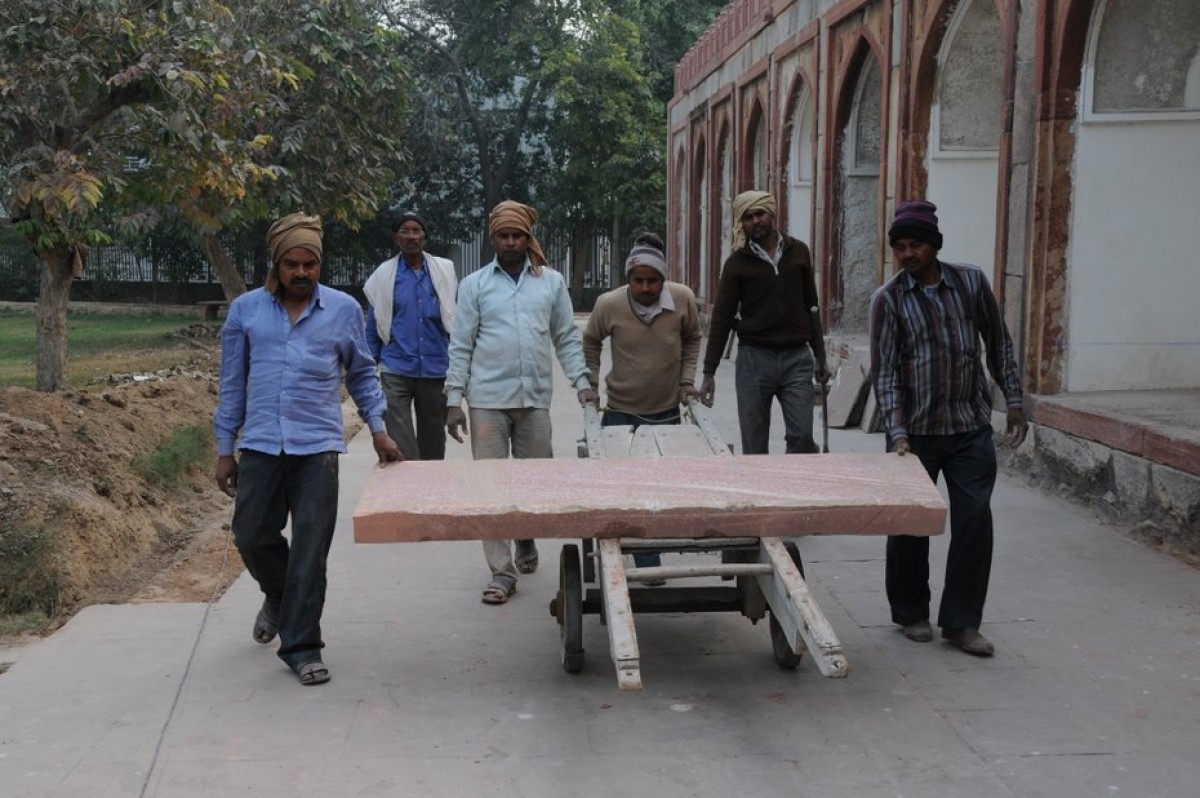

Sandstone blocks were manually transferred away from the site

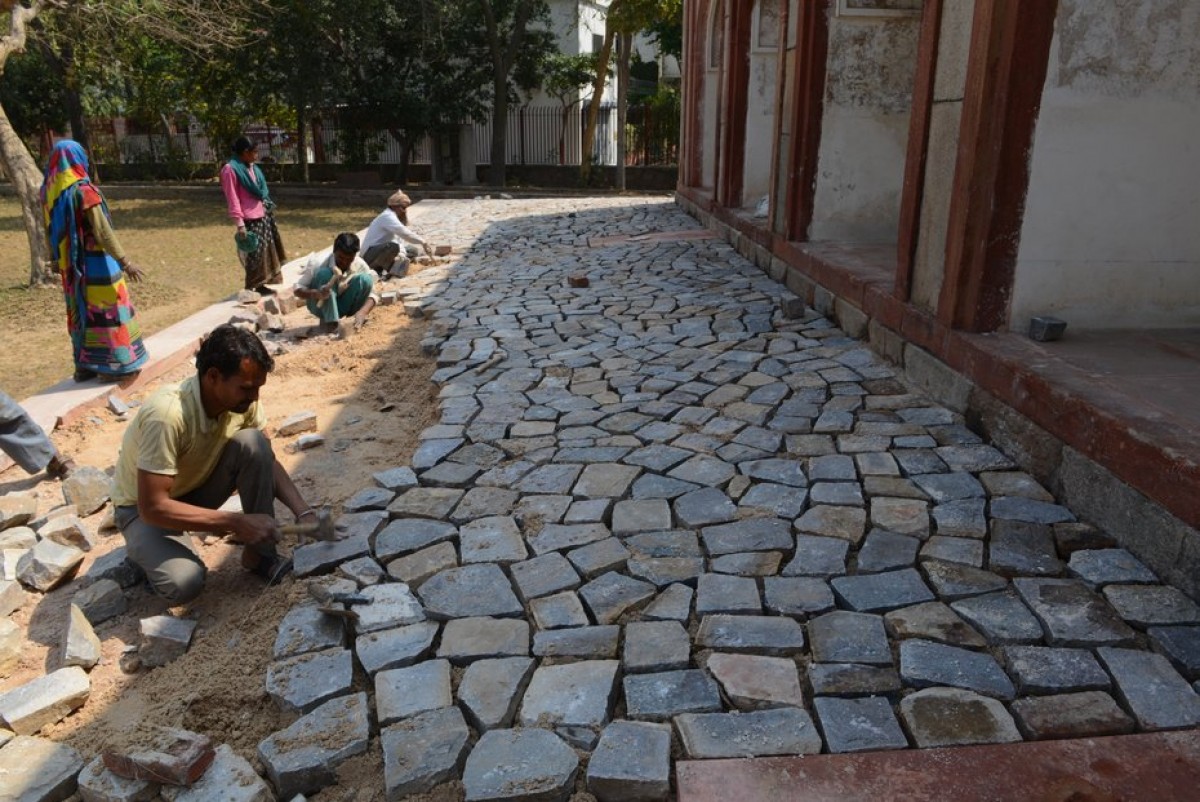

Conservation of DQ stone on the Lower plinth
Conservation of DQ stone on the Lower plinth

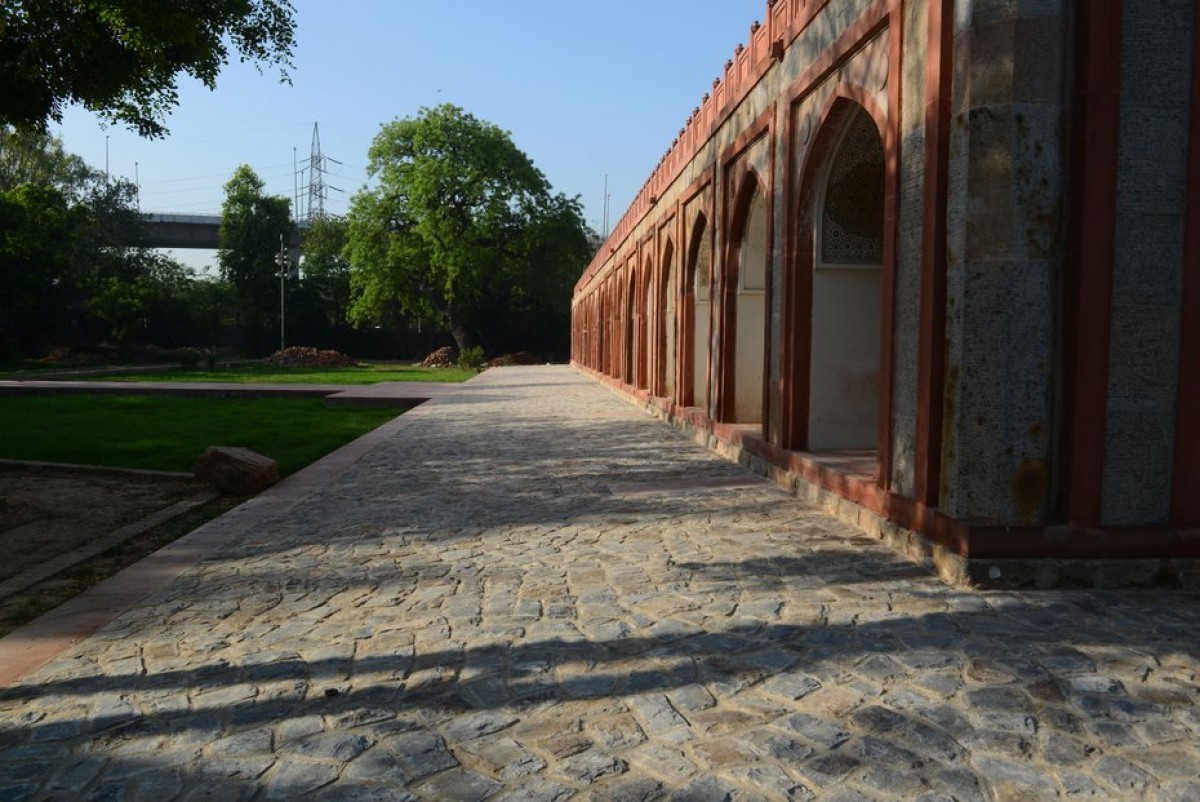

Lower plinth - after conservation
